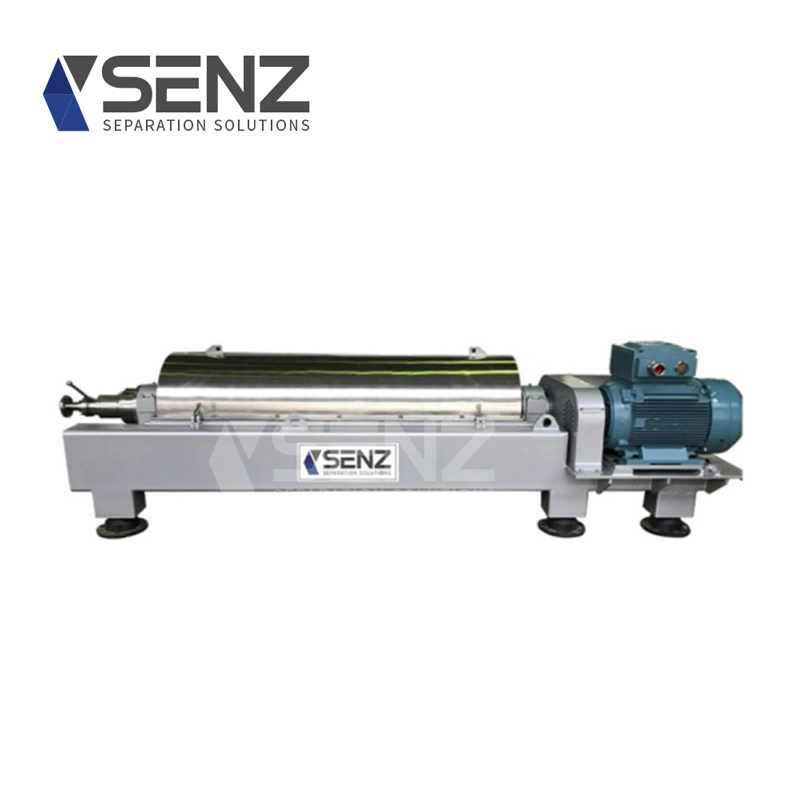

Three phase centrifuge is a kind of high efficiency separation equipment which utilizes the principle of centrifugal sedimentation to continuously separate oil and water residue.
It is mainly composed of drum, screw, differential system, liquid level baffle, drive system and control system.
Its structure is similar to that of a two-phase centrifuge. The centrifuge is mainly used to clarify or remove impurities in aging oil, waste oil and food waste oil.
Product Introduction
|
Name |
LWS520X2080-N |
|
Drum diameter |
520 mm / 20 in |
|
Drum length |
2080 mm / 82 in |
|
Maximum speed |
3000 rpm |
|
Standard speed |
2300 rpm |
|
Separating factor |
2620 |
|
Handling capacity |
15 m³/h |
|
Main motor power |
45-55 kW |
|
Auxiliary motor power |
11-22 kW |
|
Size |
4605 x 1475 x 1170 mm / 181 x 58 x 46 in |
|
Weight |
5345 Kg |
