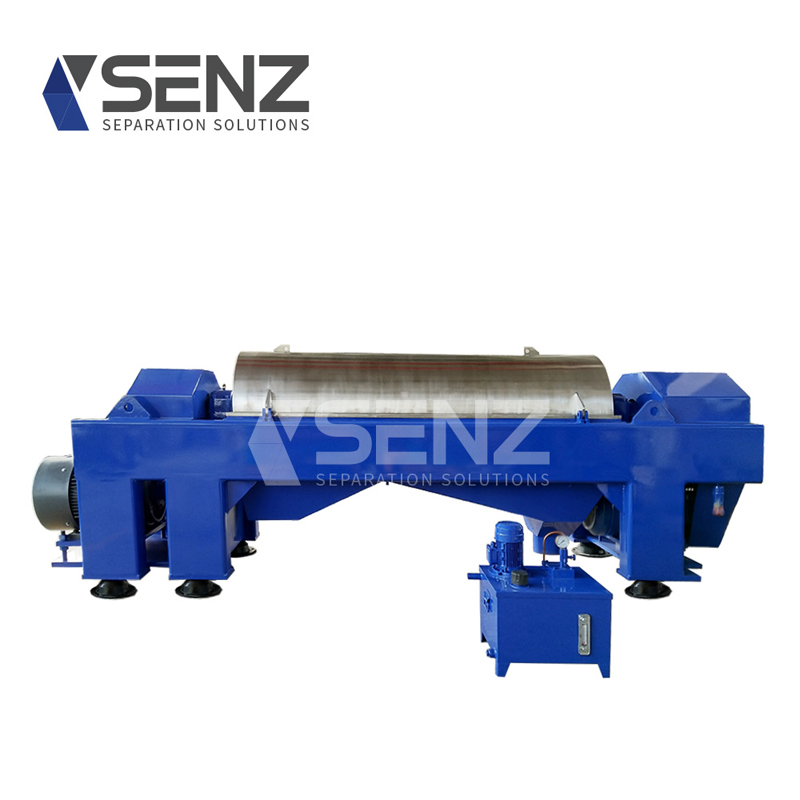

LW550 horizontal spiral centrifuge

The commonly used model LW550 has been applied to wastewater treatment, aquaculture, textile and chemical fiber wastewater, pharmaceutical wastewater, Chinese medicine residue dehydration, garbage infiltration treatment, river sludge treatment, starch and other industries.

Quotation Requirements

Product Introduction

Name	LW550X1650-N	LW550X2200-N
Drum diameter	550 mm / 22 in	550 mm / 22 in
Drum length	1650 mm / 65 in	2200 mm / 87 in
Maximum speed	3200 rpm	3000 rpm
Standard speed	2500 rpm	2300 rpm
Separating factor	3154	2772
Handling capacity	5-35 m³/h	5-40 m³/h
Main motor power	55 kW	55 kW
Auxiliary motor power	22 kW	22 kW
Size	3885 x 1350 x 1600 mm / 153 x 53 x 63 in	5180 x 1270 x 1440 mm / 204 x 50 x 57 in
Weight	4000 Kg	6000 Kg
